Quilted Fiberglass Absorbers
Industrial Quilted Fiberglass Absorbers are soft, porous, open celled materials that are used to reduce the reflection of sound waves. As a result, reverberation time and ambient noise levels are reduced thereby improving communication in a variety of applications. They are lightweight and flexible with a Class A flammability rated products can be supplied as wall panels, ceiling baffles, banners or ceiling clouds.
Quilted Fiberglass Absorber Products

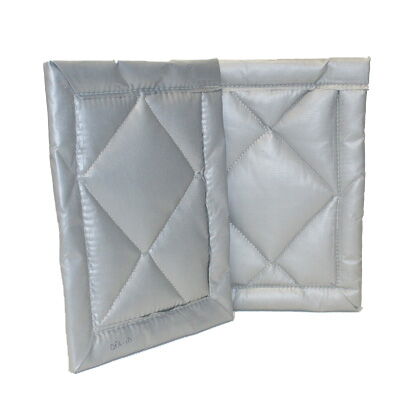

QFA-10
Consists of a durable vinyl- coated-fiberglass-cloth facing quilt ed to both sides of a two-inch thick fiberglass batting. Wall panels and overhead baffles are constructed with all edges bound and grommets across the top. Rolls are available 4’ wide x 25’ long and can be supplied with edges bound or unbound.
Data Sheet

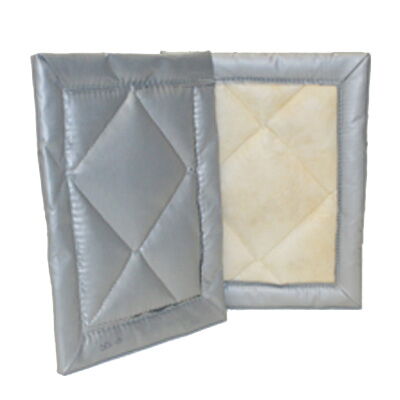

QFA-7
Consists of a 2” thick fiberglass quilted with a vinyl coated fiberglass cloth on one side and a non-porous scrim facing on the opposite side. Wall panels are constructed with all edges bound and grommets across the top. Rolls are available 4’ wide x 25’ long and can be supplied with edges bound or unbound.
Data Sheet

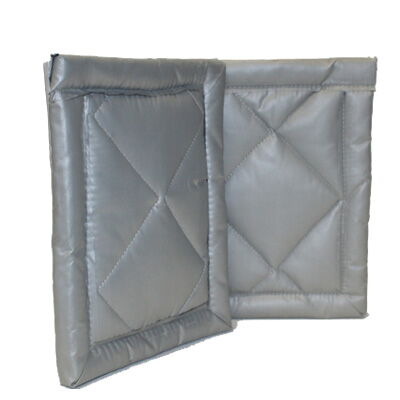

QFA-20
Offers maximum sound absorption performance across all octave band frequencies and is especially effective for rumbling low frequency applications. A vinyl-coated-fiberglass cloth facing is quilted on both sides of a 4” thick fiberglass core.
Data Sheet

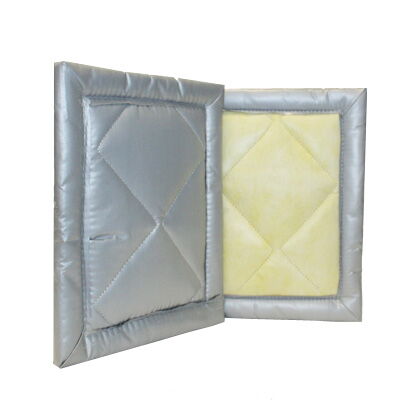

QFA-14
Consists of a vinyl coated fiberglass cloth on one side of 4” quilted fiberglass with non-porous scrim facing on the opposite side.
Data Sheet

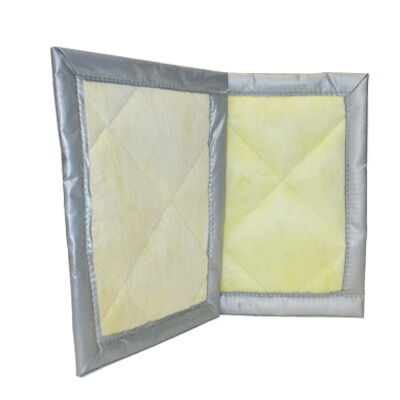

QFA-3
Comprised of a single layer of 1" fiberglass batting quilted with a non-woven porous scrim fabric on both sides. Full locking stitches are available in a diamond or straight stitch pattern.
Data Sheet

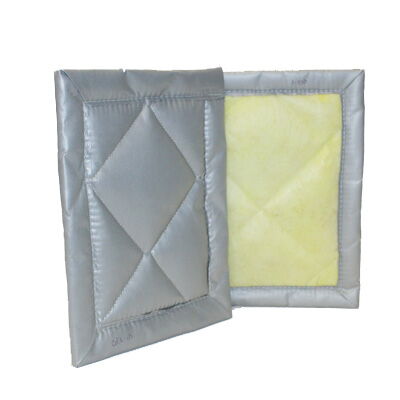

QFA-1
Consists of a vinyl coated fiberglass cloth on one side of 1" quilted fiberglass with a non-porous scrim facing on the opposite side.
Data Sheet
