Noise Barrier Composites

Sound Seal manufactures two types of Noise Barrier Composites, the Barrier Backed Composite (BBC) and the Barrier Septum Composite (BSC)

Download Brochure

Noise Barrier Composites Products

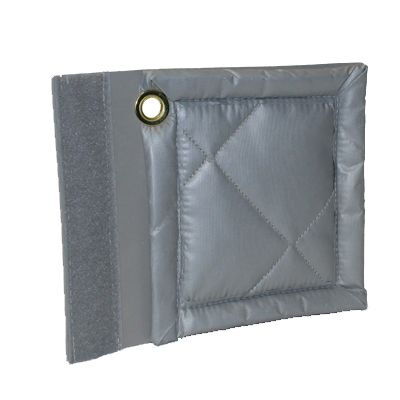

BBC 13

Consists of a reinforced 1-lb psf loaded vinyl noise barrier bonded to a 1” fiberglass that is quilted with a vinyl-coated- fiberglass-cloth facing. Curtain panels are constructed with grommets across the top and Velcro along the vertical edges. Rolls are available 54” wide x 25’ long and can be supplied with edges bound or unbound.

Data Sheet

BBC 13-2

BBC 13-2 Consists of a reinforced 1-lb. psf loaded vinyl noise barrier bonded to a 2” fiberglass that is quilted with a vinyl-coated-fiberglass-cloth facing. Curtain panel s are constructed with grommets across the top and Velcro seals along the vertical edges. Rolls are available 54” wide x 25’ long and can be supplied with edges bound or unbound. (Note: barrier is 54” wide, quilt is 48” wide and is held 3” in from each vertical edge.)

Data Sheet

BBC 10

Consists of a reinforced ½ -lb. psf loaded vinyl noise barrier bonded to a 1” fiberglass that is quilted with a vinyl-coated-fiberglass-cloth facing.

Data Sheet

BBC 14 (Silicone)

Consists of a silicone coated fiberglass cloth facing on 1” thick quilted fiberglass that is bonded to a reinforced 1-lb psf loaded vinyl barrier.

Data Sheet

BBC 15

Consists of a non-porous scrim facing on a nominally 1” thick quilted fiberglass absorber that is bonded to a reinforced 1-lb psf loaded vinyl barrier.

Data Sheet

BBC 15-2

Consists of a non -porous scrim facing on a nominally 2” thick quilted fiberglass absorber that is bonded to a reinforce d 1-lb psf loaded vinyl barrier.

Data Sheet

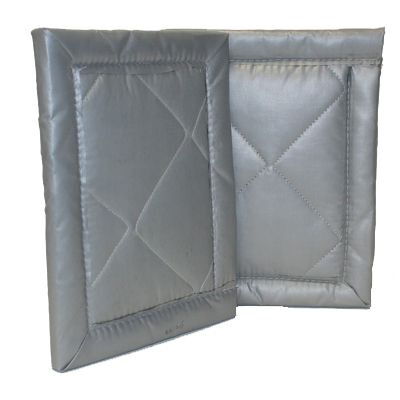

BSC 25

Consists of a non-reinforced 1-lb psf loaded vinyl noise barrier sandwiched between two layers of 1” thick acoustical fiberglass sound absorbers, each quilted with a vinyl-coated fiberglass-cloth facing.

Data Sheet

BSC 25-2LB

A non-reinforced 2-lb psf loaded vinyl noise barrier sandwiched between two layers of quilted fiberglass absorbers.

Data Sheet

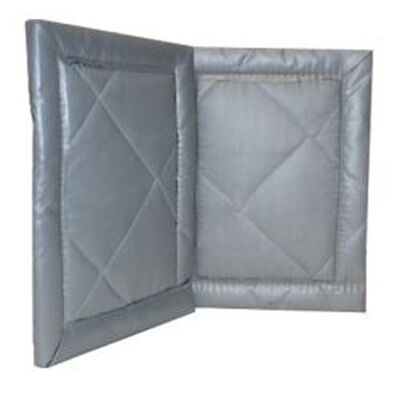

BSC 19

A non-reinforced ½ lb psf loaded vinyl barrier sandwiched between two layers of vinyl- coated-fiberglass-cloth faced 1” quilted fiberglass absorbers.

Data Sheet

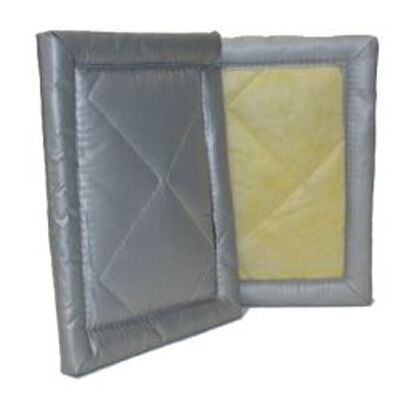

BSC 22

A non-reinforced 1-lb psf loaded vinyl barrier sandwiched between two layers of 1” quilted fiberglass absorbers. One layer of quilted fiberglass has scrim facing ; the other side has vinyl-coated- fiberglass-cloth facing.

Data Sheet

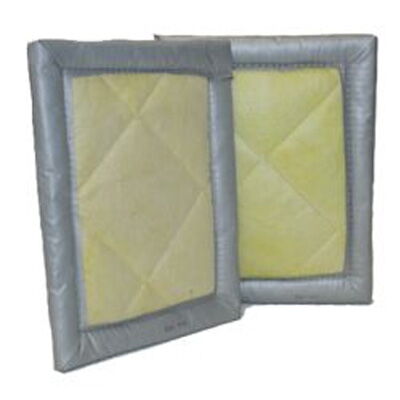

BSC 24

A non-reinforced 1-lb psf loaded vinyl barrier is sandwiched between two layers of 1” thick quilted fiberglass sound absorbers. Both sides of the quilted fiberglass have a scrim facing.

Data Sheet

BSC 26 (Scilicone)

A non-reinforced 1-lb psf loaded vinyl barrier sandwiched between two 1” thick absorbers faced with a silicone coated-fiberglass-cloth.

Data Sheet
